Flanges As Per B16.5

ASME B16.5 Flanges Catalog
Back To Products
Engineered Piping Solutions

Industrial Flanges Catalog

Design: As Per ASME B16.5

Material Standard

Carbon Steel : ASTM A105, LTCS
Alloy Steel : A182 F5 / F9 / F11 F12 / F22 / F51 / F91
Stainless Steel : A182 F304/304L/304H, F316/316L/316H, F321, 316Ti
Slip-On Flanges

Slip-On Flanges (Raised Face / Flat Face)

  • Size: 1/2" To 48"
  • Class 150#, 300#: 1/2" To 48"
  • Class 600#, 900#: 1/2" To 24"
  • Class 1500#, 2500#: 1/2" To 6"
Get Quote

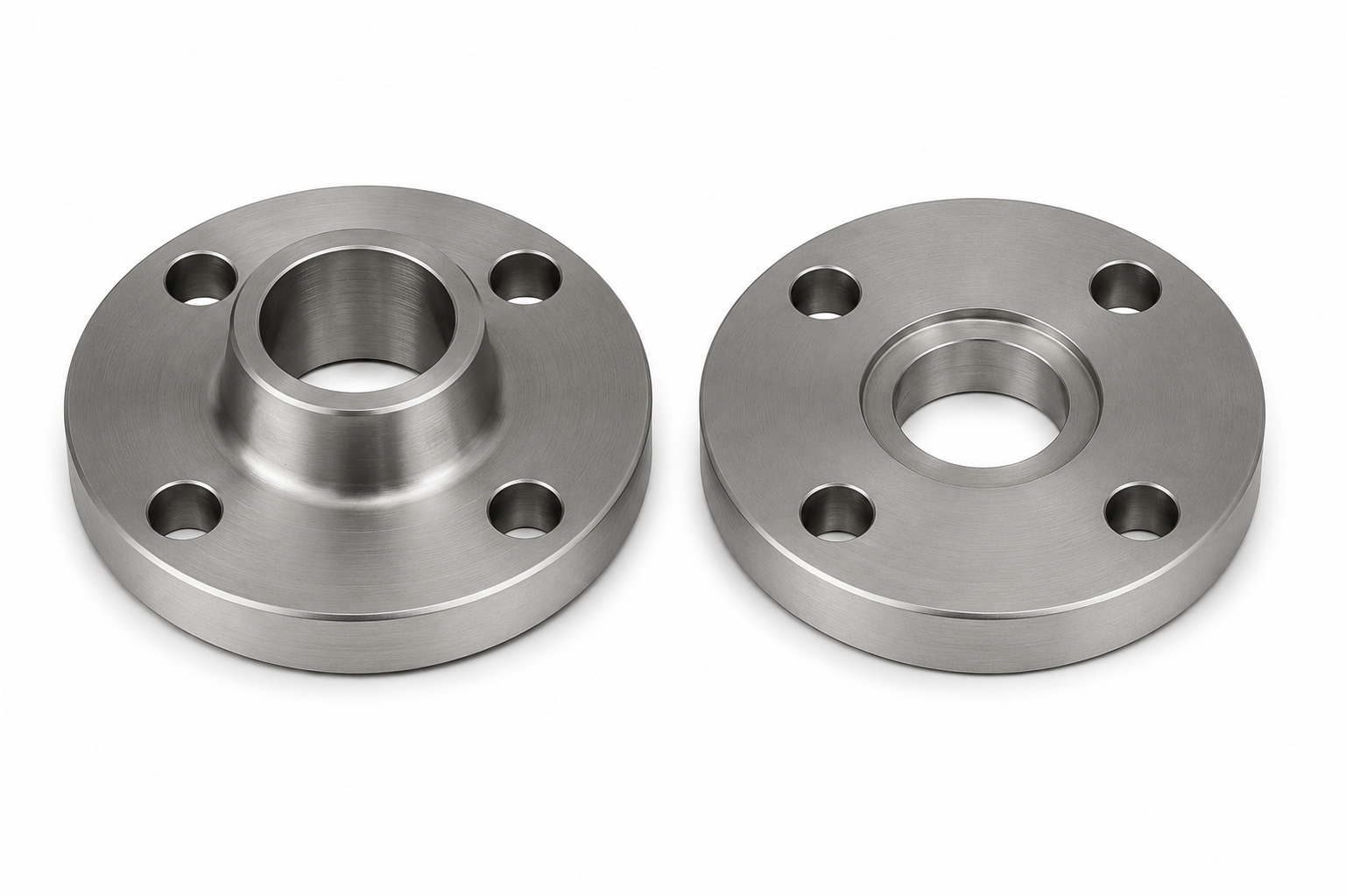

Socket Weld Flanges

Socket Weld Flanges (Raised Face / Flat Face)

  • Size Range: 1/2" To 4"
  • Pressure Rating: 150#, 300#, 600#
  • End Type: Socket Weld
  • Facing: RF / FF
Get Quote

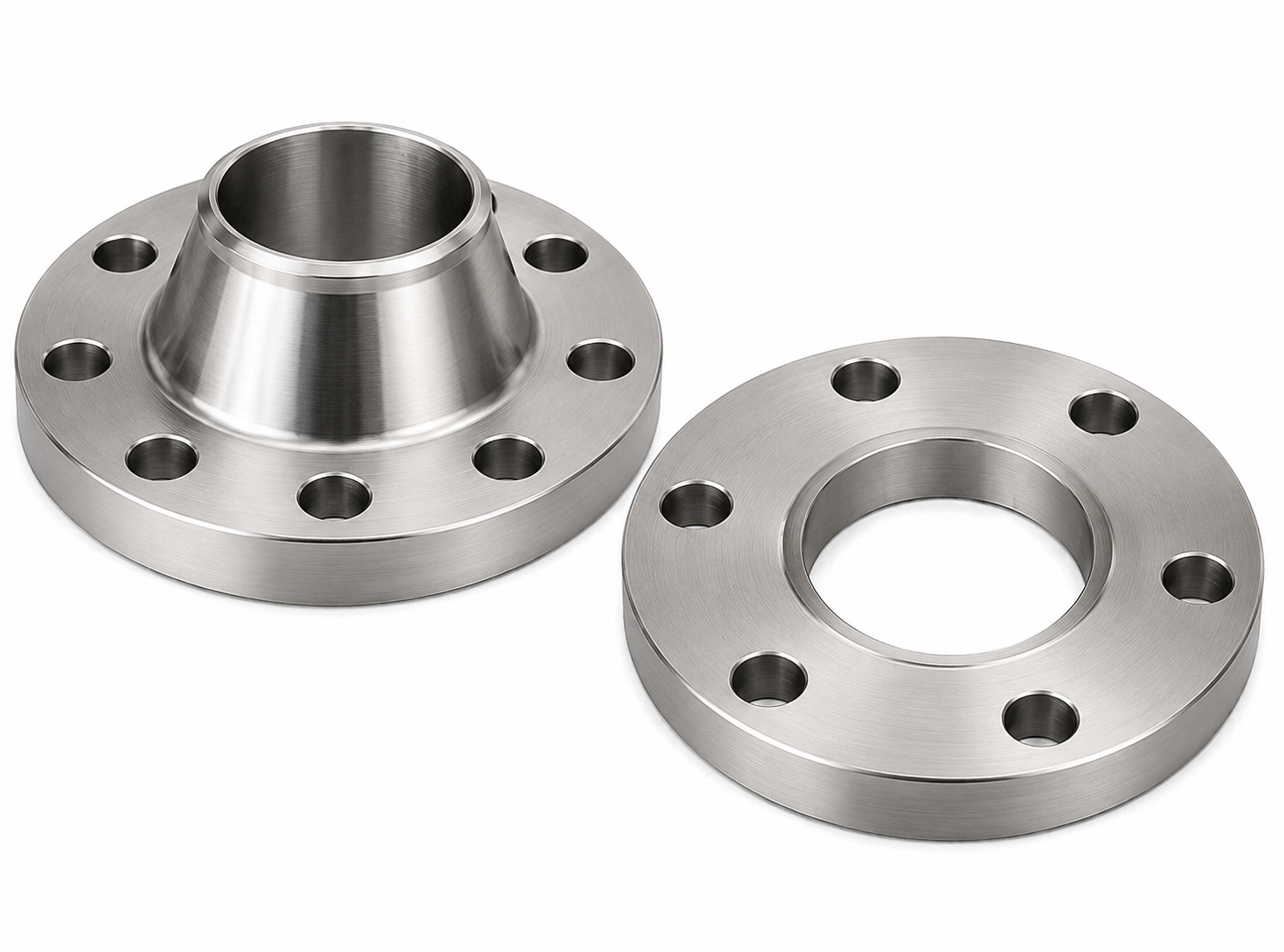

Weld-Neck Flanges

Weld-Neck Flanges (Raised Face / Flat Face)

  • Size: 1/2" To 48"
  • Class 150#, 300#: 1/2" To 48"
  • Class 600#, 900#: 1/2" To 24"
  • Class 1500#, 2500#: 1/2" To 6"
Get Quote

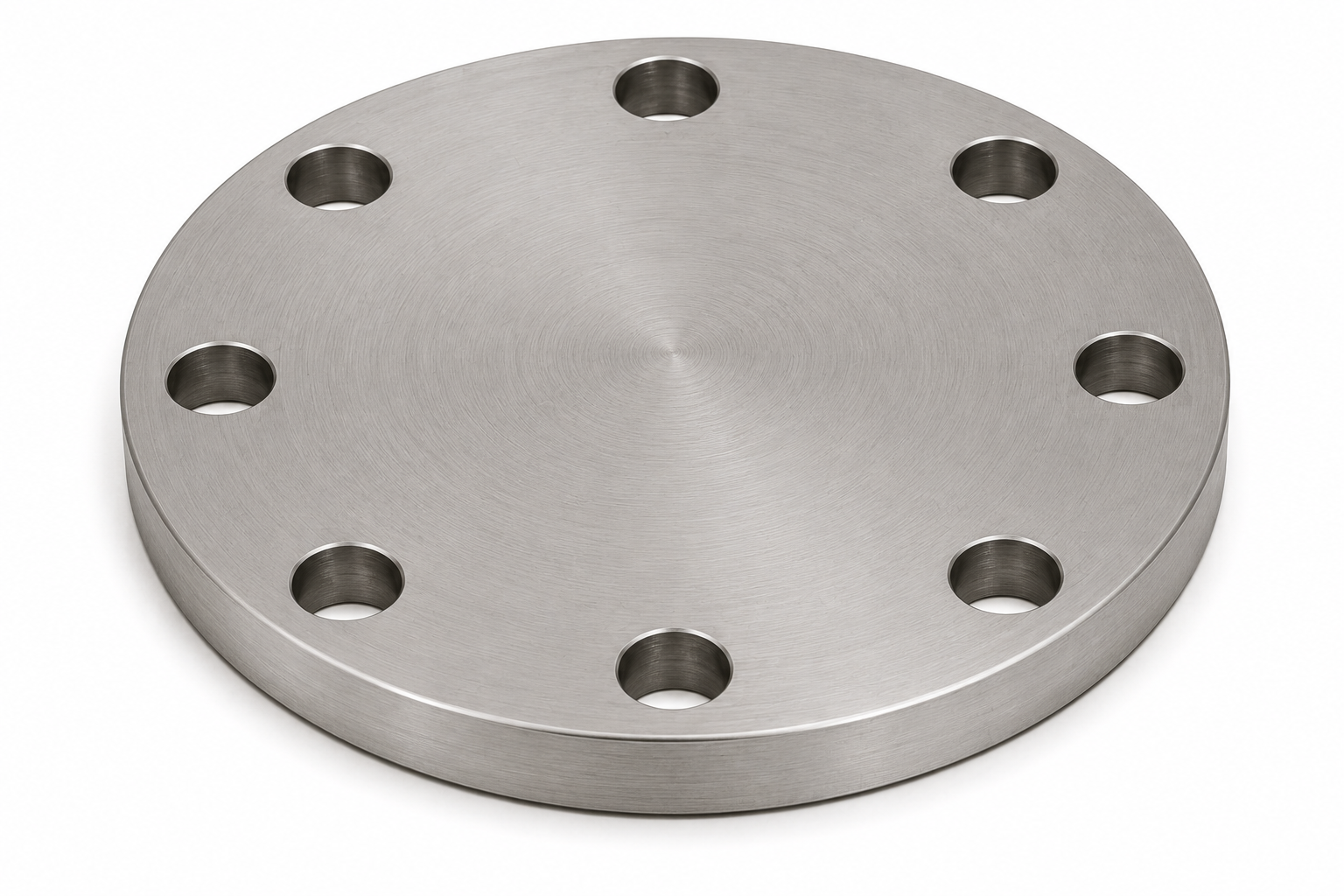

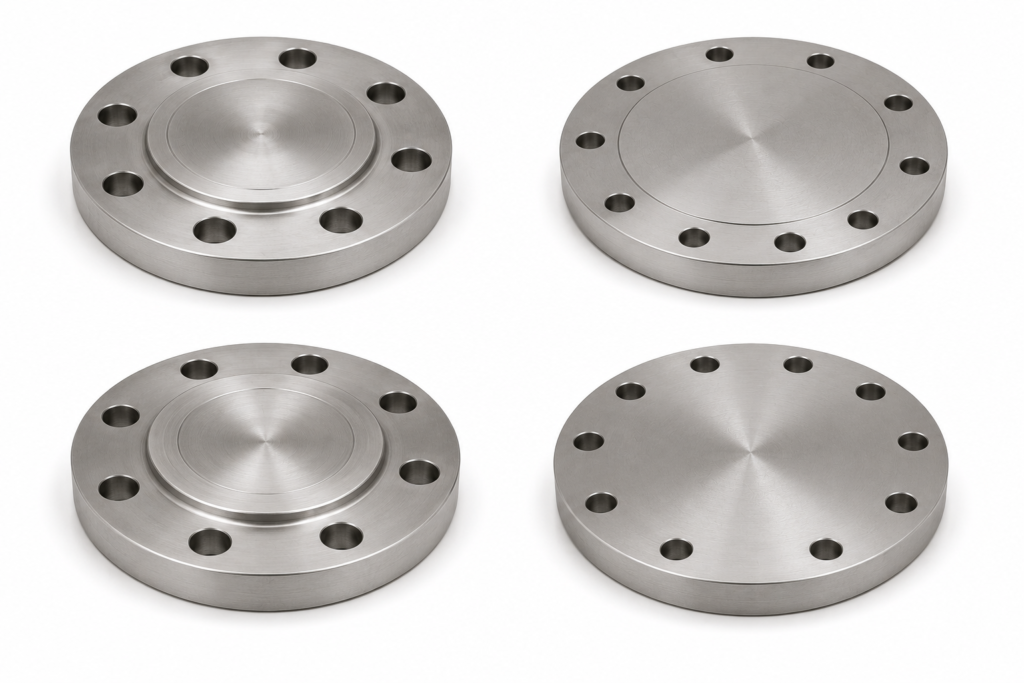

Blind Flanges

Blind Flanges (Raised Face / Flat Face)

  • Size: 1/2" To 48"
  • Class 150#, 300#: 1/2" To 48"
  • Class 600#, 900#: 1/2" To 24"
  • Class 1500#, 2500#: 1/2" To 6"
Get Quote

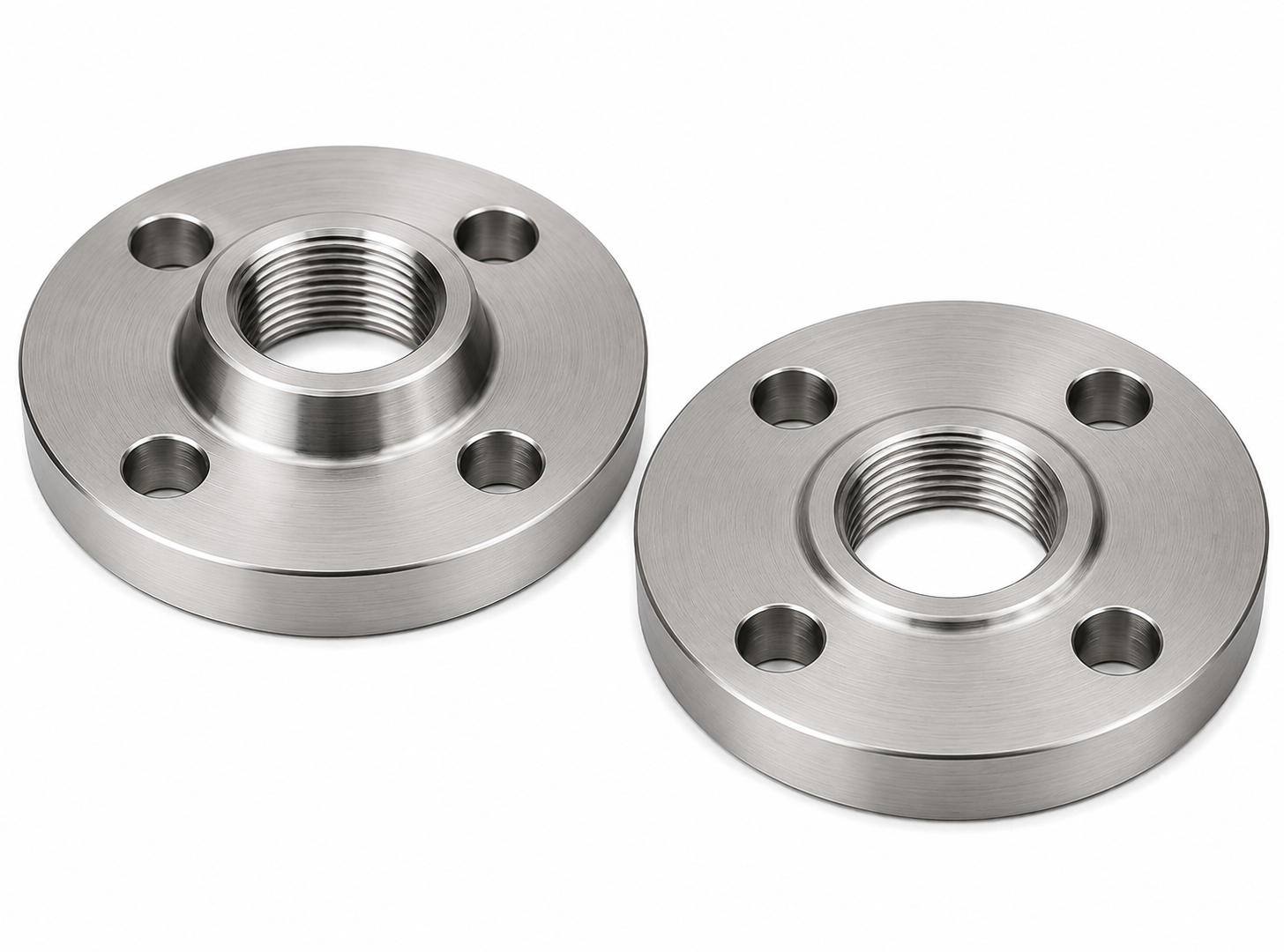

Threaded Flanges

Threaded Flanges (Raised Face / Flat Face)

  • Size Range: 1/2" To 12"
  • Pressure Class: 150#, 300#, 600#
  • End Thread Type: BSPP / BSPT / NPT / API LP
Get Quote

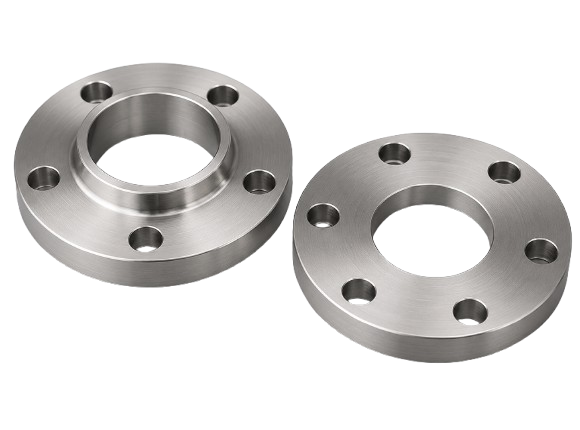

Plate Flange

Plate Flange

  • Size Range: 1/2" To 48"
  • Pressure Class: 150#, 300#
  • Facing: Flat Face (FF)
Get Quote

Design:
As Per ASME B16.5

Material Standard:
Carbon Steel: ASTM A105, LTCS

SliP-On Flanges (Raised Face / Flate Face)
SPECIFICATION:
Size: 1/2" to 48”
Pressure Class: 150#, 300#
Size: 1/2" to 24"
Pressure Class: 600#, 900#Size: 1/2" to 6"
Pressure Class: 1500#, 2500#

Socket Weld Flanges (Raised Face / Flate Face)
SPECIFICATION:
Size: 1/2" to 4”
Pressure Class: 150#, 300#, 600#
End Type : Socket Weld

Weld-Neck Flanges (Raised Face / Flate Face)
SPECIFICATION:
Size: 1/2" to 48”
Pressure Class: 150#, 300#
Size: 1/2" to 24"
Pressure Class: 600#, 900#Size: 1/2" to 6"
Pressure Class: 1500#, 2500#

Blind Flanges (Raised Face / Flate Face)
SPECIFICATION:Size: 1/2" to 48”
Pressure Class: 150#, 300#
Size: 1/2" to 24"
Pressure Class: 600#, 900#
Size: 1/2" to 6"
Pressure Class: 1500#, 2500#

Threaded Flanges (Raised Face / Flate Face)
SPECIFICATION:
Size: 1/2" to 12”
Pressure Class: 150#, 300#, 600#
End Type: Threaded (BSPP / BSPT / NPT/ API LP)

Plate Flange
SPECIFICATION:Size: 1/2" to 48”
Pressure Class: 150#, 300#

Cap
SPECIFICATION:
Size: 1/2" to 4"
Pressure Class: 2000#, 3000#, 6000#
End Type : Threaded (BSPP / BSPT / NPT/ API LP)


Round Head Plug
SPECIFICATION:
Size: 1/2" to 4"
Pressure Class: 2000#, 3000#, 6000#
End Type : Threaded (BSPP / BSPT / NPT/ API LP)

Squre Plug
SPECIFICATION:
Size: 1/2" to 4"
Pressure Class: 2000#, 3000#, 6000#
End Type : Threaded (BSPP / BSPT / NPT/ API LP)

Hex Plug
SPECIFICATION:
Size: 1/2" to 4"
Pressure Class: 2000#, 3000#, 6000#
End Type : Threaded (BSPP / BSPT / NPT/ API LP)

Hex Bushing
SPECIFICATION:
Size: 1/2" to 4"
End Type : Threaded (BSPP / BSPT / NPT/ API LP)

Pipe Nipple
SPECIFICATION:
Size: 1/2" to 4"
Pressure Class: 2000#, 3000#, 6000#
End Type : Threaded (BSPP / BSPT / NPT/ API LP)

Hex Nipple
Size: 1/8" to 2"
End Type : Threaded (BSPP / BSPT / NPT/ API LP)
